Plunge Cut



Unlike wall cutting which does not allow cutting deeper than the radius of diamond blade, plunge cutting enables cutting of thick reinforced concrete deeper than the diameter of blade for use by plunging its rotation axis into pilot hole, offering low noise, vibration free operation, PAT.



  • The use combining with wall cutter enables to cut an opening section without overcutting.
  • Can be open 350~450 quadrilateral hold only one anchor bolt works.
  • The Plunge Cut Attachment is made up of three units, Main Body, Cover and Pole Base.
  • Diamond Blade, Drill head and 4”BTC are required for execution.

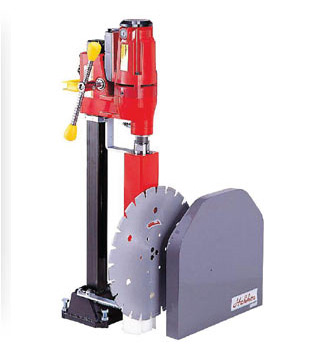

PC-16

Drill Head to be used

:

SPN-201

Max. Thickness of Cut

:

282mm

Max. Blade Dia

:

16"



Blade Sizes

8"

:

218mm



10"

:

269mm

12"

:

318mm

14"

:

368mm

16"

:

418mm
