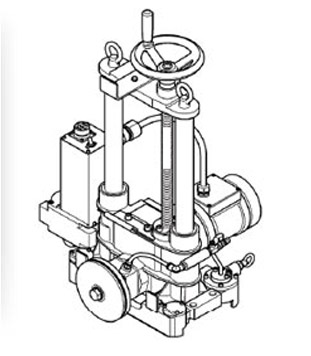

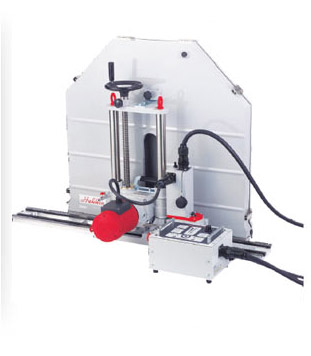

Wall Cutter





CDW-40

Model     CDW-40

Power supply



:

230V 50/60Hz

Rated Output



:

2.400W

Max. Output



:

6,400W

No-Load Speed

HI

:

840 RPM



LOW

:

340 RPM

Standard Blade Dia.



:

30" ( 762mm)

Max. Blade Dia.



:

40" ( 1,016mm)

Blade Hole Dia.



:

35mm

Max. Depth of Cut-

30"(762mm)

:

301mm



40"(1016mm)

:

428mm

Size W x L x H



:

484 x 460 x 753mm

Weight



:

36.5 Kg


BLADE COVER

Model

30A

40A

48A

Blade Dia

30"

40"

48"

Weight

9.7 Kg

13.5 Kg

18.0 Kg.


TRACK RAIL

Model

600L

1200L

1800L

Length

600mm

1200mm

1800mm

Weight

6.3 Kg

12.5 Kg

18.8 Kg.

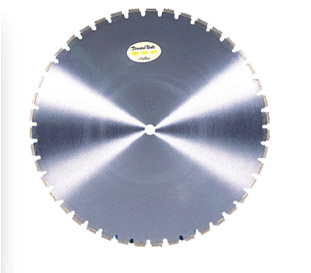

DIAMOND BLADE
Model Hole Dia.

CDW-40

35

CDW-30

35

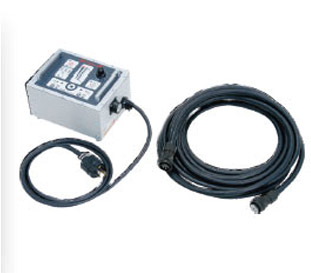

Model   CDW-40

Power In Use

:

230V 50/60Hz

Max. Power Consumption

:

150W

Rated Current Control Range

:

30A

Size W x L x H

:

265 x 200 x 179mm

Weight

:

5.0 Kg


>> Soft starting circuit is included
>> Manual control is also possible
>> Cutting load current is shown by bar chart Meter
