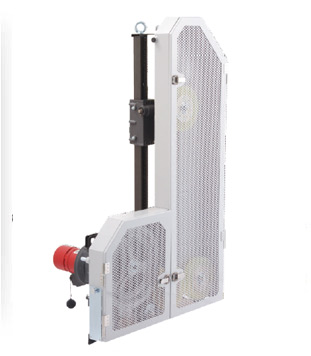

Wire Saw





DSX-10

Model     DSX-10

Power supply



:

230V 50/60Hz

Rated Output



:

2.400W

Max. Output



:

6,400W

No-Load Speed

HI

:

1000 RPM



LOW

:

420 RPM

Cutting Area Rectangle



0.62m2

Cutting Area Column



0.65m2(0910})

Size W x L x H



:

919 x 532 x 1,486mm

Weight



:

79.2 Kg



Control Box

Model   BE-31

Power In Use

:

230V 50/60Hz

Max. Power Consumption

:

150W

Rated Current Control Range

:

30A

Size W x L x H

:

265 x 200 x 179mm

Weight

:

5.0 Kg


>> Auto-Stop function can be used
>> Soft starting circuit is included
>> Manual control is also possible
>> Cutting load current is shown by bar chart Meter


There is not trouble an oil pressure unit and is most suitable wire saw for a small section around 0.6m2 at a sharp turn.
